Automatic Food Dispenser Mechanism with Solar Kit

THIS LISTING INCLUDES THE SOLAR AUTOMATIC FEEDER
Thank you for your interest in learning more about the products we manufacture!

Nowadays, more and more people with pets at home, guard dogs in businesses, or livestock on farms, ranches, or rural properties are turning to automatic feeders for convenience, efficiency, and cost savings in animal nutrition.

An automatic feeder eliminates the need for someone to be physically present every day to feed the animals. It also helps prevent obesity caused by overeating and, in most cases, reduces feed waste through controlled portioning at scheduled times.

WHO WE ARE
At King of Feeders, we specialize in developing and manufacturing Solar Automatic Feeders for various animals, including cats, dogs, rabbits, chickens, pigs, fish, horses, calves, cows, cattle, and more.

Our development team has extensive experience in precision mechanical design. Our equipment is designed and simulated using state-of-the-art mechanical engineering software. Before being industrialized and marketed, each product undergoes rigorous field testing with potential customers to ensure we deliver robust, reliable, and high-quality solutions.

ABOUT THE SOLAR AUTOMATIC FEEDER
Our Solar Automatic Feeder is designed for easy installation on any type of container, such as barrels, drums, buckets, or any other reservoir the customer already owns or plans to purchase locally.

To install it, simply cut a 5.1" x 5.1" square opening at the bottom of the container, drill four holes at each corner of the square, and secure the feeder mechanism using the four screws, washers, and nuts included with the product.

OUR COMPETITIVE ADVANTAGES
✅ Industrial-Grade, Robust Design – No DIY fixes or unreliable setups!

✅ Advanced Mechanism with Bearings & Seals – Unlike other feeders, our model features internal bearings and seals that connect the motor to the auger shaft. This prevents jamming, vibrations, and inconsistencies during operation, ensuring maximum motor torque to handle all types of feed without excessive strain.

✅ Extended Motor Lifespan – Bearings significantly reduce resistance, allowing the motor to run smoothly with minimal effort, thus increasing durability.

✅ Low Power Consumption – Designed for efficiency.

✅ Durable, High-Quality Materials:

Industrial-grade ABS/Nylon housing for durability.
Carbon steel auger, treated and zinc-coated to prevent corrosion.
12V DC high-torque motor with a gearbox.
SOLAR AUTOMATIC FEEDER DIMENSIONS
Approximate Size: 5.9" (H) x 6.3" (W) x 10.6" (L)
Feed Inlet Opening: 4.9" x 4.9"
SOLAR SYSTEM DESCRIPTION
The Solar System is designed to power the Solar Automatic Feeder in locations without access to 110V/220V grid electricity. It is ideal for fish farming in excavated ponds, reservoir net cages, or any other off-grid feeding application.

The system includes a 12V/10A PWM Controller, a 10W Solar Panel, and a 12V Digital Timer with second-precision control (minimum setting: 1 second).

⚠ Battery Not Included – The system is designed to work with a 12V/7Ah Sealed Lead-Acid Battery, which must be purchased separately.

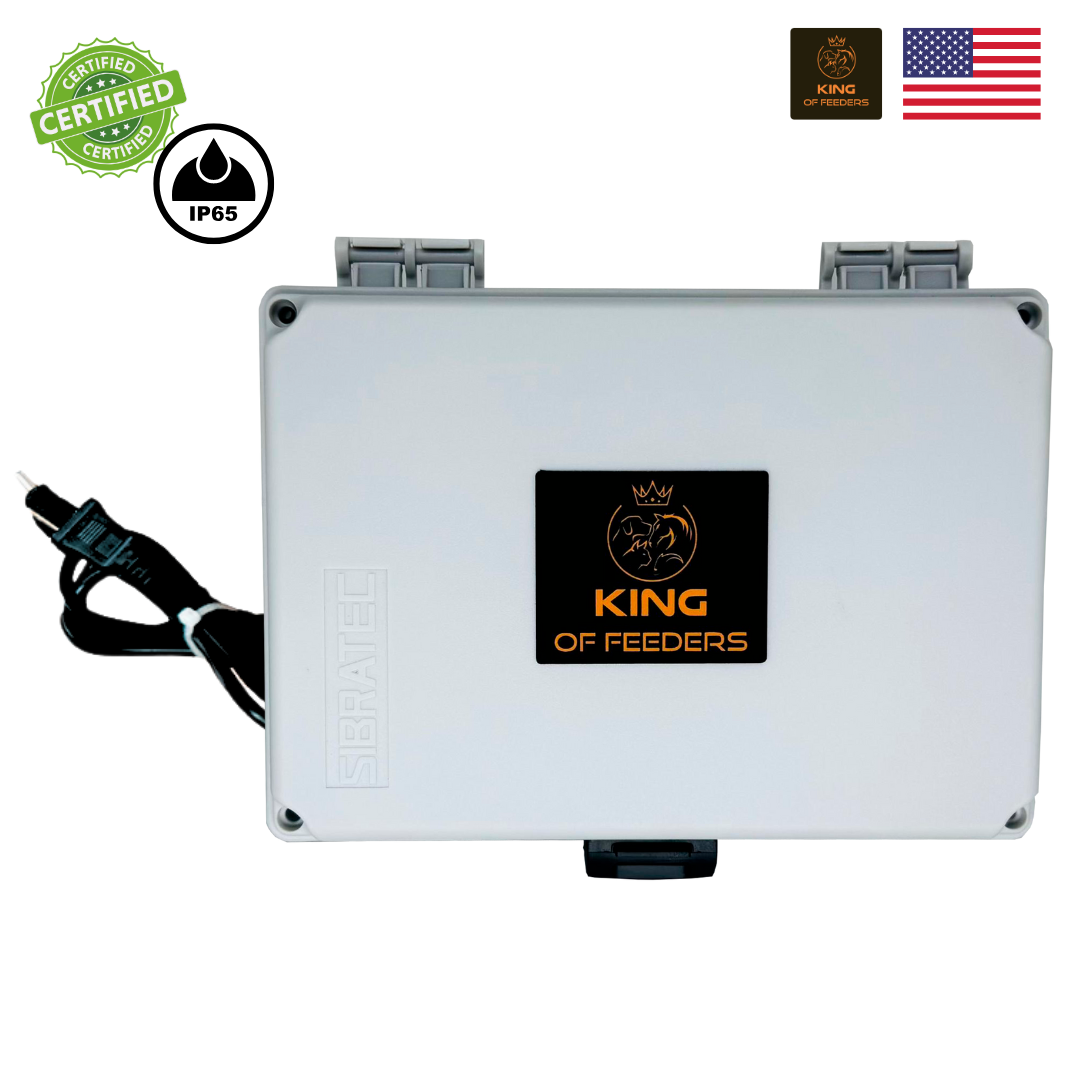

All components, except for the Solar Panel, are housed in a weatherproof IP65 enclosure, featuring external wiring and connectors for seamless integration with the 12V Motor of the Feeder and the Solar Panel.

🔹 Example Operation:
The 12V Digital Timer can be programmed to activate the Solar Automatic Feeder at 8:00 AM for 10 seconds, turning off at 8:00:10 AM. This process can be scheduled up to 8 times per day, allowing you to feed animals at different times automatically.

TECHNICAL SPECIFICATIONS
🔋 Battery (Not Included):

Recommended Voltage: 12V DC
Recommended Capacity: 7Ah
⏳ Digital Timer:

Operating Voltage: 12V DC
Maximum Current: 16A
🔧 PWM Charge Controller:

Operating Voltage: 12V
Maximum Charge Current: 10A
☀ Solar Panel:

Maximum Power Voltage (Vmp): 18.2V DC
Power Output: 10W
Dimensions: 9.8" x 13.8"
📦 Weatherproof IP65 Enclosure:

Dimensions: 7.9" x 5.5" x 5.5"
WHAT'S INCLUDED IN THIS LISTING
✔ 1x Solar Automatic Feeder with 2" Auger (Optional 1" Auger for Fish Feed)
✔ 1x 12V Digital Timer
✔ 1x 12V/10A PWM Charge Controller
✔ 1x 10W Solar Panel
✔ 1x IP65 Weatherproof Enclosure with Sealing & Lock
✔ Pre-wired Cables & Connectors
✔ 4x Screws, Washers, and Nuts for Mounting

⚠ Battery Not Included – Requires a 12V/7Ah Battery (Sold Separately).
